✓ In Stock | Free Sample Available - test before bulk order | Volume & Tender Pricing - contact sales@topnetsystem.com

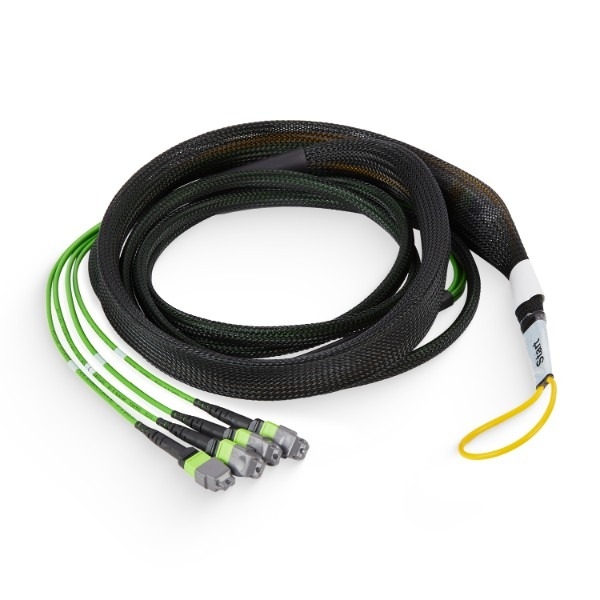

| Connector A | MTP Pro/PC | Connector B | MTP Pro/PC |
| Fiber Mode | MM | Wavelength | 850nm |
| Fiber Type 1 | MM OM5 | Fiber Type 2 | MM OM5 |
| Fiber Count | 4*12F | Min. Bend Radius | 7.5mm |
| Polarity | Type B | Cable Jacket | OFNP (Plenum) |
| Cable OD | 3.0mm | Cable Structure | 250um Bare Fiber |
| Return Loss | 20dB | Breakout Tube | 3.0mm |
| Attenuation @850nm | 3.0dB/km | Insertion Loss | 0.35dB max (MM Elite) |
| Storage Temperature | -40 to +75 C | Attenuation @1300nm | 1.0dB/km |
| Installation Tensile Strength | 80/150N | Operating Temperature | -10 to +60 C |
| Connector Durability | 50 times | Cable Tensile Strength (Long/Short) | 80/150N |
