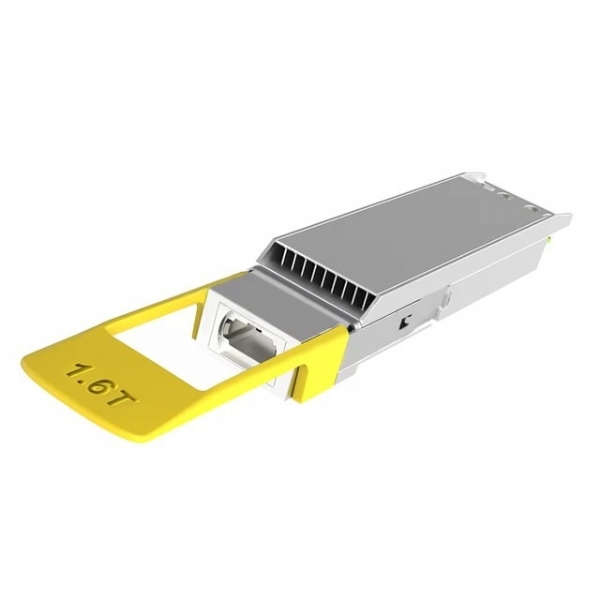

The 1.6T OSFP DR8D presents two MPO-12/APC ports, each operable as an independent 800G-DR4-class connection - the natural bridge between 1.6T switch silicon and existing 800G/400G infrastructure. Eight 200G PAM4 lanes at 1311nm split cleanly across the two ports for 500m single-mode reach.
Deploy DR8D where 1.6T ports must fan out into an installed MPO-12 plant: mixed-generation fabrics upgrade the spine without touching leaf cabling.
| Form Factor | OSFP (OSFP224, 8x200G electrical) |
| Data Rate | 1.6 Tbps (2x800G operation) |
| Wavelength | 1311nm |
| Reach | 500m |
| Connector | Dual MPO-12/APC |
| Fiber | Single-mode (SMF) |
| DDM/DOM | Supported |
| Case Temp | 0 to 70°C |
Part of our 1.6T OSFP / OSFP-XD family, building directly on the shipping 800G platform. See the form factor decoder for the 200G/lane generation map. Contact sales@topnetsystem.com for datasheets and program qualification.
