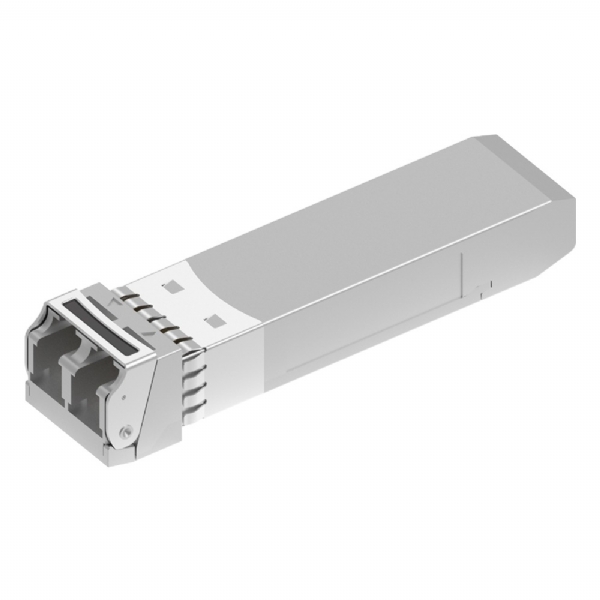

50G SFP56 SR VCSEL 850nm 100m Optical Transceiver
- 50G SFP56 SR VCSEL 850nm 100m Optical Transceiver
- Item : SFP56-50G-SR
-
-
| Name | Value |
| Descriptions | QSFP56-50G-SR |
| Date Rate | 50G |
| TX | VCSEL |
| RX | PIN |
| Reach | 100M |
| Output Power(dBm) | -6~4 |
| Sensitivity (dBm) | -6.5 |
| Temperature (℃) | 0-70 |
- Transmission data rate up to 53Gbps per channel
- 53Gbps PAM4 transmitter and PAM4 receiver
- 850nm VCSEL array, PIN photo detector array
- Internal DSP circuits on both receiver and transmitter channels
- Hot Pluggable SFP form factor and Compliant with SFF-8431,SFF-8472, SFP56 MSA IEEE 802.3cd
- Maximum link length of 70m on OM3 Multimode Fiber (MMF)and 100m on OM4 MMF with FEC
- Dual LC connector receptacle
