OSFP 800Gb/s SR8
- OSFP 800Gb/s SR8
- Item : TS-OSFP-SR8-800G
-

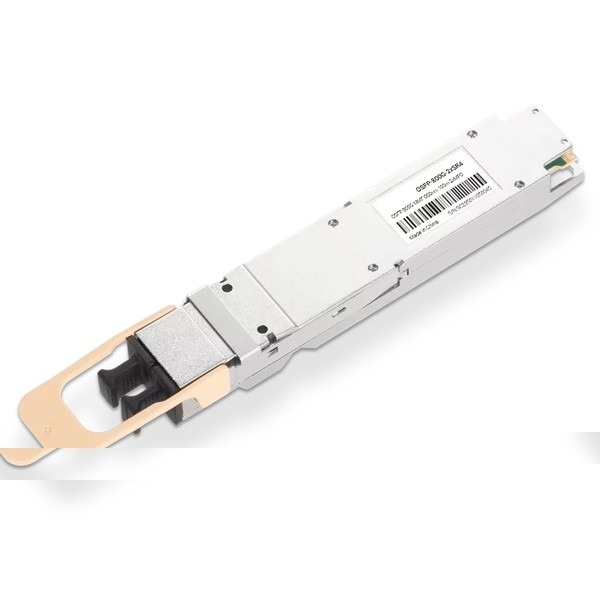

- 800G OSFP SR8 transceiver modules are designed for InfiniBand NDR and Ethernet links up to 50m on OM4 MMF.
- 100G-PAM4 modulation, 8-channel parallel optical interface
- Twin-port OSFP form factor with two 4-channel MPO-12/APC connectors
- 850nm multimode VCSEL-based optics
- Supports both InfiniBand NDR and 800GbE Ethernet protocols
- DDM (Digital Diagnostic Monitoring) function implemented
- Hot-pluggable, compliant with OSFP MSA and CMIS 4.0
- Maximum link length of 50m on OM4 multimode fiber
- Compliant with RoHS
- Compatible with NVIDIA/Mellanox MMA4Z00-NS
- Ideal for Quantum-2/Spectrum-4 switches, ConnectX-7 adapters, and BlueField-3 DPUs in AI/HPC data centers
