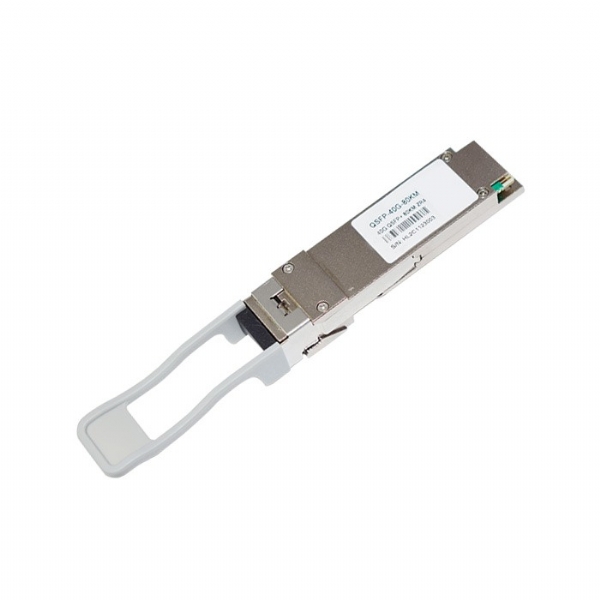

40G QSFP+ ZR4 80KM SMF
40G QSFP+ ZR4 80KM SMF
40G QSFP+ ZR4 80KM SMF
Item
:
TS-QSFP-ZR4
Inquiry
Name
Value
Descriptions
40G QSFP+ ZR4
Date Rate
40G
TX
DFB
RX
APD
Reach
80KM
Output Power(dBm)
-2.7~4.5
Sensitivity (dBm)
-28
Temperature (℃)
0-70
QSFP+ optical transceiver is equipped with LC duplex connectors, reaching a link up to 80km over OS2.Topnet manufactured 40GBASE-ZR4 QSFP+ transceiver module is compliant with QSFP+ MSA and IEEE 802.3ba 40GBASE-ZR4
Product Description
4 LAN WDM channels are 1295.56nm, 1300.05nm, 1304.58nm and 1309.14nm
Single +3.3V power supply
QSFP+ MSA compliant
Up to 80km transmission
Operating case temperature: 0~70C
Maximum 3.5W operation power
RoHS compliant
Compliant with IEEE802.3ba
Compliant with QSFP+ MSA: SFF-8436
40G Ethernet
Infiniband 4X SDR DDR QDR
40G Telecom connections
