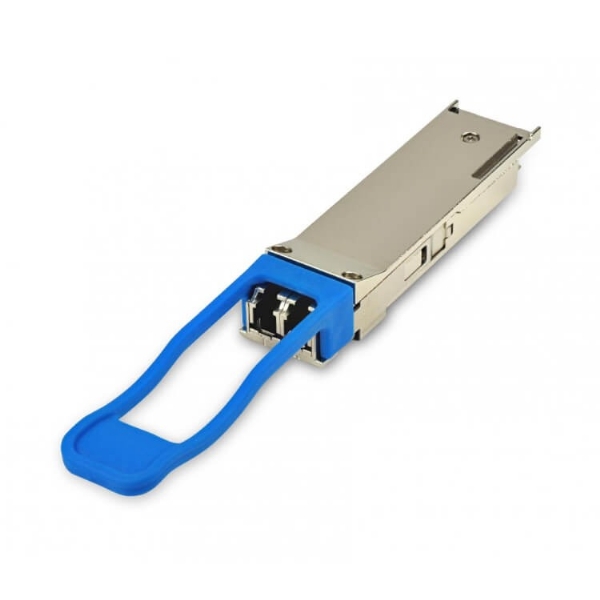

40G QSFP+ LR4 SMF 10KM
40G QSFP+ LR4 SMF 10KM
Item : TS-QSFP-LR4
Inquiry
Name Value Descriptions 40G QSFP+ LR4 Date Rate 40G TX DFB RX APD Reach 10KM Output Power(dBm) -7~2.3 Sensitivity (dBm) -11.5 Temperature (℃) 0-70
The optical connectivity is based on two SMF LC connectors, one for Tx and one for Rx. The Tx and Rx each consist of 4 10GB/s CWDM channels, whose wavelengths are in the 1300nm range.
Transmission data rate up to 11.2Gbps per channel
QSFP+ MSA compliant
Compliant to IEEE 802.3ba specification for 40GBASE-LR4 links
4 CWDM un-cooled DFB lasers, using ITU G.694.2 wavelength grid at 1270, 1290, 1310 and 1330nm
High Sensitivity PIN-TIA with optical DEMUX
Up to 10km reach over standard single mode fiber
Compliant with QDR/DDR Infiniband data rates
Hot pluggable electrical interface
Lower power consumption
Operating case temperature 0°C to +70°C
3.3V power supply
RoHS 6 compliant（lead free）
