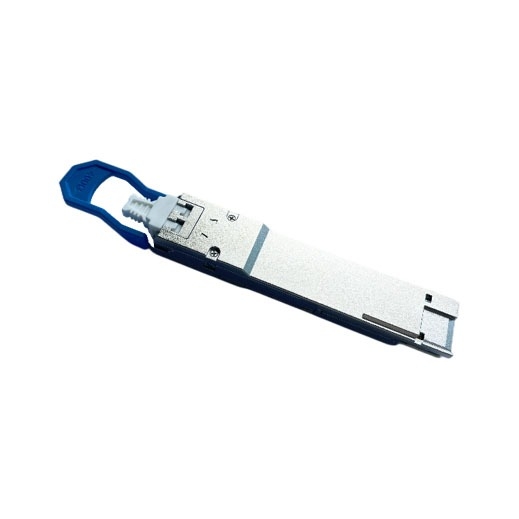

400G QSFP-DD LR4
- 400G QSFP-DD LR4
- Item : TS-QSFPDD-LR4
-
-
| Name | Value |
| Descriptions | 400G-QSFPDD-LR4 |
| Date Rate | 400G |
| TX | 4CWDM EML |
| RX | PIN |
| Reach | 10KM |
| Output Power(dBm) | -2.7~5.1 |
| Sensitivity (dBm) | -6.8 |
| Temperature (℃) | 0-70 |
- QSFP-DD MSA compliant
- 4 CWDM lanes MUX/DEMUX design
- 100G Lambda MSA 400G-LR4 Specification compliant
- Up to 10km transmission on single mode fiber (SMF) with FEC
- Operating case temperature: 0 to 70 ºC
- 8x53.125Gb/s electrical interface (400GAUI-8)
- Data Rate 106.25Gbps (PAM4) per channel.
- Maximum power consumption 12W
- Duplex LC connector
- RoHS-6 compliant
