400G QSFP-DD LR4 Optical Transceiver
400G QSFP-DD LR4 Optical Transceiver
Item : TS-400G-QSFPDD-LR4
Inquiry
Name Value Descriptions 400G QSFP-DD LR4 Date Rate 400G TX EML RX PIN Reach 10km Output Power(dBm) -2.7~5.1 Sensitivity (dBm) -9 Temperature (℃) 0-70

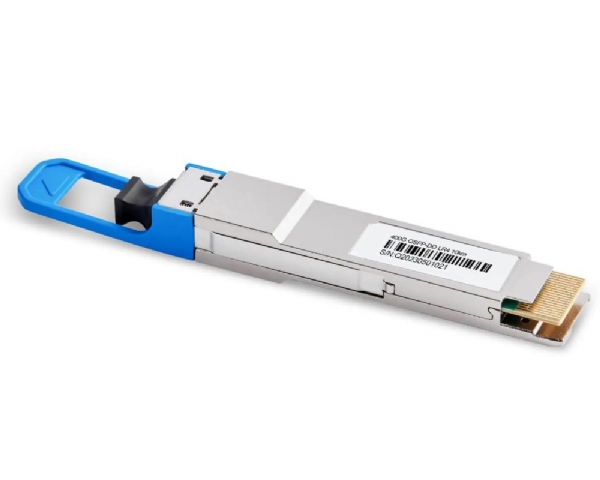

400G QSFP-DD LR4 Optical Transceiver (TS-400G-QSFPDD-LR4) is a 400G QSFP-DD optical transceiver operating at CWDM4 (1271-1331nm) over SMF up to 10km with LC duplex connector and EML optics.
Form factor: QSFP-DD Data rate: 400G (PAM4) Operating wavelength: CWDM4 (1271-1331nm) Transmission distance: up to 10km over SMF Connector: LC duplex Transmitter: EML / Receiver: PIN Power consumption: 12W maximum DDM/DOM digital diagnostics supported Operating temperature: 0 to 70 C (commercial) Hot-pluggable, RoHS compliant, MSA compliant
