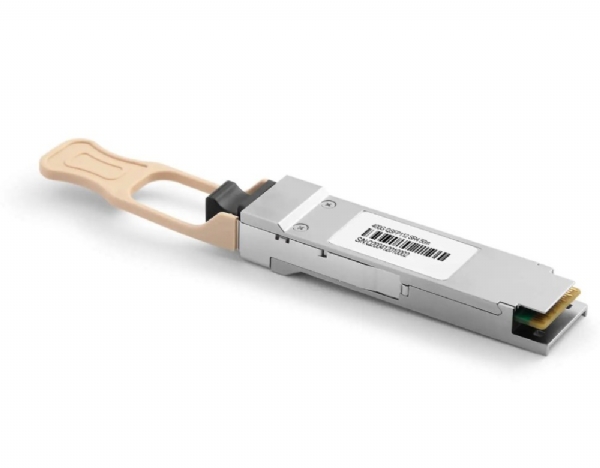

400G OSFP112 SR4 Optical Transceiver
400G OSFP112 SR4 Optical Transceiver
Item : TS-400G-OSFP112-SR4
Inquiry
Name Value Descriptions 400G OSFP112 SR4 Date Rate 400G TX VCSEL RX PIN Reach 50m Output Power(dBm) -4.6~4 Sensitivity (dBm) -6.4 Temperature (℃) 0-70
400G OSFP112 SR4 Optical Transceiver (TS-400G-OSFP112-SR4) is a 400G OSFP112 optical transceiver operating at 850nm over MMF (OM3/OM4) up to 50m with MPO-12 connector and VCSEL optics.
Form factor: OSFP112 Data rate: 400G (PAM4) Operating wavelength: 850nm Transmission distance: up to 50m over MMF (OM3/OM4) Connector: MPO-12 Transmitter: VCSEL / Receiver: PIN Power consumption: 12W maximum DDM/DOM digital diagnostics supported Operating temperature: 0 to 70 C (commercial) Hot-pluggable, RoHS compliant, MSA compliant
