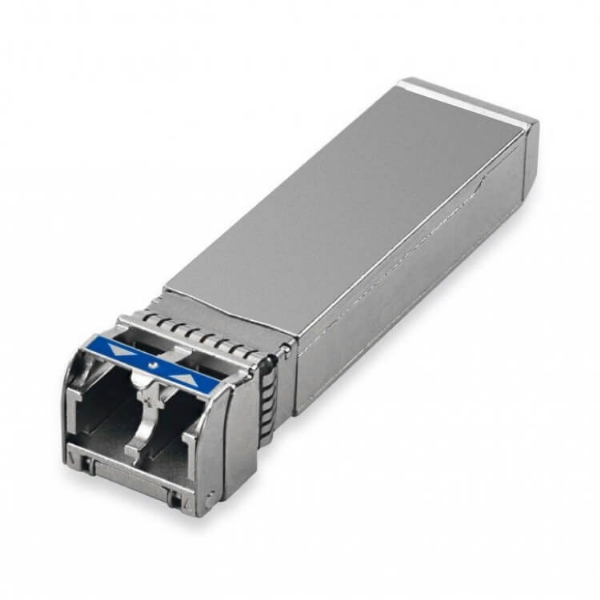

25G SFP28 1310NM 10KM SMF
25G SFP28 1310NM 10KM SMF
Item : TSS-SFP28-LR
Inquiry
Name Value Descriptions 25G SFP28 LR Date Rate 25G TX DFB RX PIN Reach 10KM Output Power(dBm) -8.4~3 Sensitivity (dBm) -10.4 Temperature (℃) 0-70
The SFP28 LR module electrical interface is compliant to SFI electrical specifications. The transmitter input and receiver output impedance is 100 Ohms differential. Data lines are internally AC coupled.
25Gb/s serial optical interface
1310nm DFB transmitter, PIN photo-detector
2-wire interface for management specifications compliant with SFF 8472 DDM interface for optical transceivers
Operating case temperature: 0 °C to 70°C
Advanced firmware allow customer system encryption information to be stored in transceiver
Cost effective SFP28 solution, enables higher port densities and greater bandwidth
RoHS compliant
