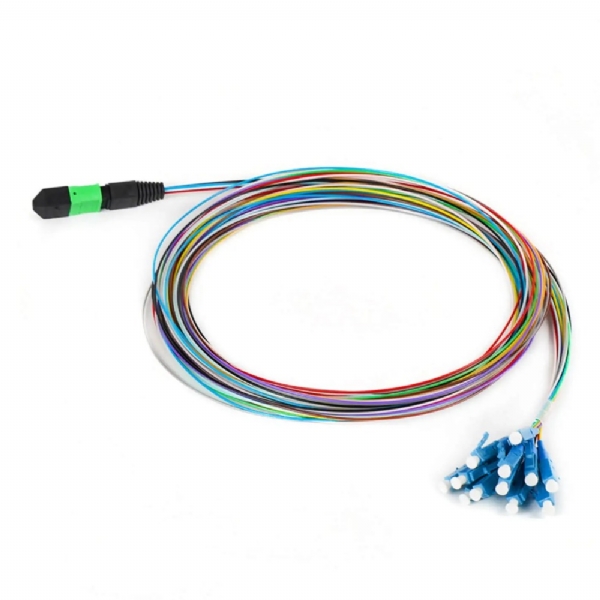

| Connector A | MTP/PC (Female) | Connector B | LC/UPC (simplex) |
| Fiber Mode | OM4 50/125μm | Wavelength | 850/1300nm |
| Fiber Type | Corning ClearCurve OM4 | Min. Bend Radius | 7.5mm |
| Fiber Count | 24F | Cable Jacket | Hytrel |
| Cable OD | 0.6mm | Cable Structure | simplex |
| Return Loss | ≥20dB | Insertion Loss | Max. 0.60dB (Typical 0.35dB) |
| Attenuation | ≤3.0dB/km @850nm | Attenuation | ≤1.0dB/km @1300nm |
| Operating Temp. | -10°C ~ +60°C | Storage Temp. | -40°C ~ +75°C |
