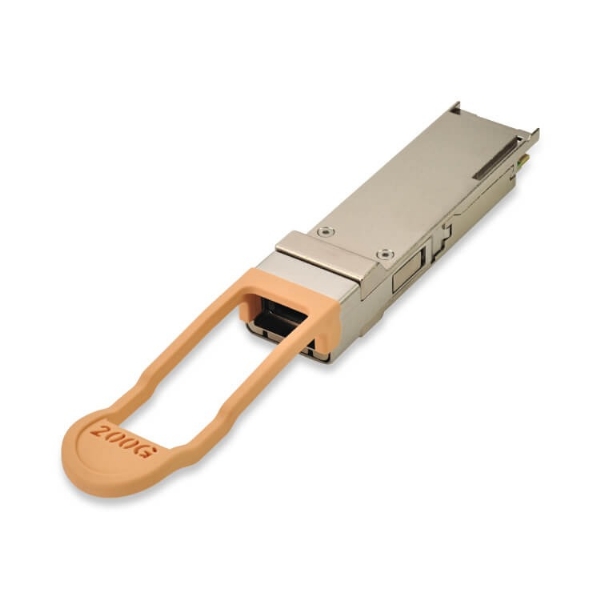

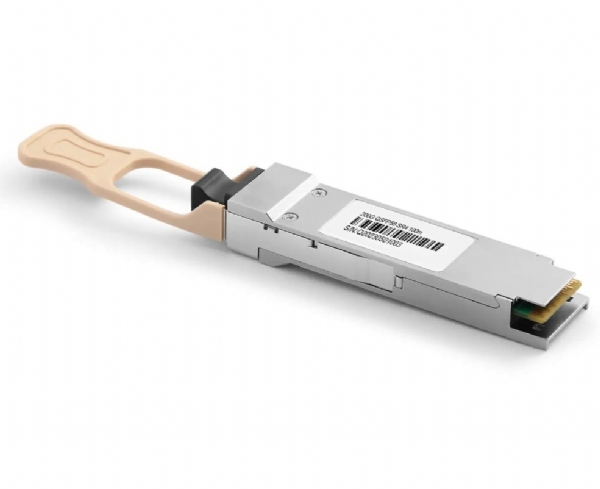

200G QSFP56 SR4 MMF 100M
200G QSFP56 SR4 MMF 100M
Item : TS-QSFP56-SR4
Inquiry
Name Value Descriptions 200G QSFP56 SR4 Date Rate 200G TX VCSEL RX PIN Reach 100M Output Power(dBm) -6.5~4 Sensitivity (dBm) -8.5 Temperature (℃) 0-70
QSFP56 SR4 transceiver modules are designed for use in Gigabit Ethernet links on up to 70m on OM3 MMF or 100m on OM4 MMF. They are compliant with the QSFP MSA and portions of IEEE P802.3-2018.
Four-channel full-duplex transceiver module
Hot-pluggable QSFP56 form factor
Supports 212.5Gb/s aggregate bit rate
Maximum link length of 100m on OM4 Multimode Fiber
200GAUI-4 C2M electrical interface (4x50Gb/s PAM4 retimed)
4x50Gb/s PAM4 VCSEL transmitter
Maximum power dissipation: 5.5W
RoHS-6 compliant
Operating case temperature range: 0°C to 70°C
Single 3.3V power supply
MPO-12 connector
I2C management interface
