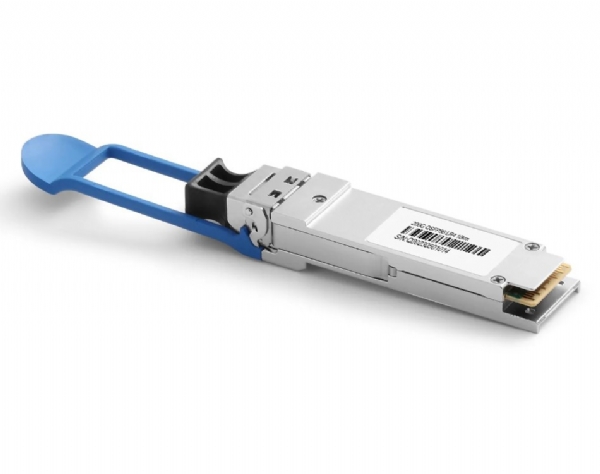

200G QSFP56 LR4 Optical Transceiver
200G QSFP56 LR4 Optical Transceiver
Item : TS-QSFP56-LR4
Inquiry
Name Value Descriptions 200G QSFP56 LR4 Date Rate 200G TX EML RX PIN Reach 10km Output Power(dBm) -3.4~5.3 Sensitivity (dBm) -9.7 Temperature (℃) 0-70
200G QSFP56 LR4 Optical Transceiver is a 200G QSFP56 module operating at LWDM4 (1295-1309nm) over SMF up to 10km with LC connector, EML transmitter and PIN receiver, 8W power.
Specifications Form Factor QSFP56 Data Rate 212Gbps Modulation PAM4 Wavelength 1295.56/1300.05/1304.58/1309.14nm Distance 10km Connector LC Fiber SMF Transmitter EML Receiver PIN TX Power -3.4~5.3dBm Rx Sensitivity -9.7dBm Receiver Overload 5.3dBm Power Budget 6.3dB Extinction Ratio ＞3.5dB Power Consumption ≤8W DSP Yes Inbuilt FEC No Protocols IEEE 802.3bs Operating Temperature 0℃ ~ + 70℃ Storage Temperature -40℃ ~ + 85℃
