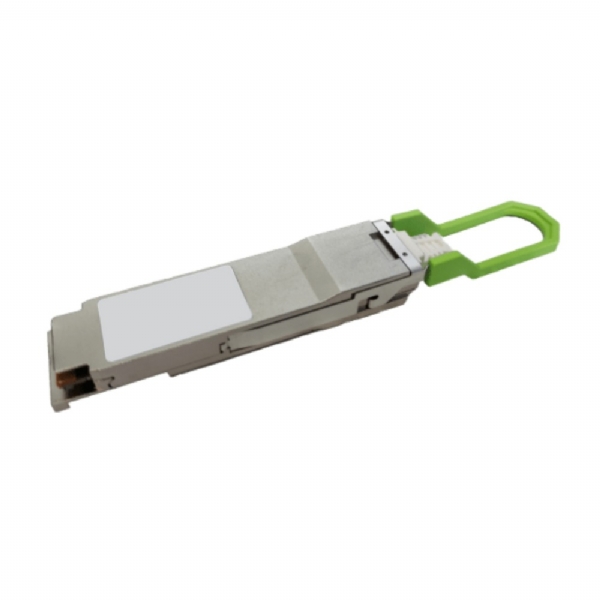

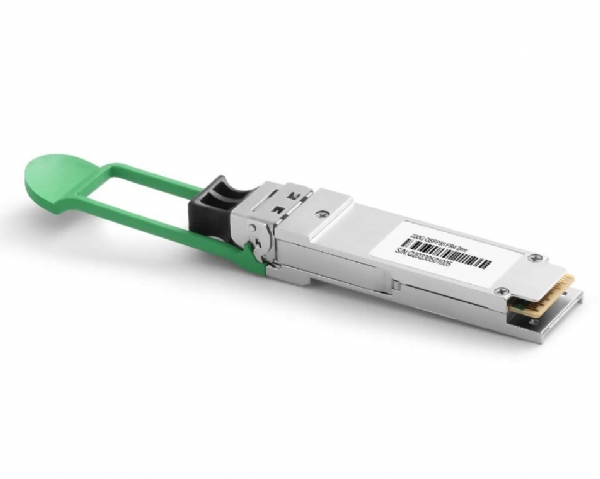

200G QSFP56 FR4 Optical Transceiver
- 200G QSFP56 FR4 Optical Transceiver
- Item : TS-QSFP56-FR4
-
-
| Name | Value |
| Descriptions | 200G QSFP56 FR4 |
| Date Rate | 200G |
| TX | DFB |
| RX | PIN |
| Reach | 2km |
| Output Power(dBm) | -4.2~4.7 |
| Sensitivity (dBm) | -8.2 |
| Temperature (℃) | 0-70 |
- 200G QSFP56 FR4 Optical Transceiver is a 200G QSFP56 module operating over SMF up to 2km with LC connector, DFB transmitter and PIN receiver.
Specifications
| Form Factor | QSFP56 | Data Rate | 212Gbps |
| Modulation | PAM4 | Wavelength | Ch0 1271nm
Ch1 1291nm
Ch2 1311nm
Ch3 1331nm |
| Distance | 2km | Connector | LC |
| Fiber | SMF | Transmitter | DFB |
| Receiver | PIN | TX Power | -4.2~4.7dBm |
| Rx Sensitivity | -8.2dBm | Receiver Overload | 4.7dBm |
| Power Budget | 4dB | Extinction Ratio | ＞3.5dB |
| Power Consumption | ≤6.5W | DSP | Yes |
| Inbuilt FEC | No | Protocols | IEEE 802.3bs |
| Operating Temperature | 0℃ ~ + 70℃ | Storage Temperature | -40℃ ~ + 85℃ |
