1.25G SFP SX 850NM 550M
- 1.25G SFP SX 850NM 550M
- Item : TS-1285-SX
-
-
| Name | Value |
| Descriptions | 1.25G SFP SX |
| Date Rate | 1.25G |
| TX | VCSEL |
| RX | PIN |
| Reach | 550M |
| Output Power(dBm) | -9.5~-3.5 |
| Sensitivity (dBm) | -18 |
| Temperature (℃) | 0-70 |

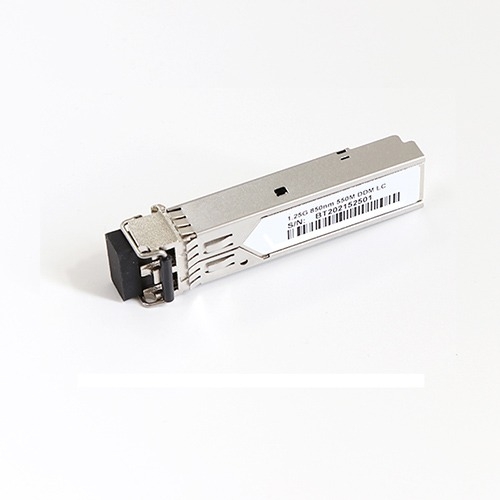

- The SFP transceivers are high performance, cost effective modules supporting data-rate of 1.25Gbps and 550m transmission distance with MMF.
- Data-rate of 1.25Gbps operation
- 850nm VCSEL laser and PIN photo detector
- Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
- Digital Diagnostic Monitoring:
- Internal Calibration or External Calibration
- 550m transmission with 50/125µm MMF
- 300m transmission with 62.5/125µm MMF
- Compatible with RoHS
- +3.3V single power supply
- Operating case temperature:
- Standard : 0 to +70°C
- Extended : -20 to +85°C
- industrial : -40 to +85°C
