1.25G SFP BIDI TX1550 RX1310NM 20KM
1.25G SFP BIDI TX1550 RX1310NM 20KM
Item : TSB-1253X-20-X
Inquiry
Name Value Descriptions 1.25G SFP BIDI TX1550 Date Rate 1.25G TX FP RX PIN Reach 20KM Output Power(dBm) -9~-3 Sensitivity (dBm) -23 Temperature (℃) 0-70

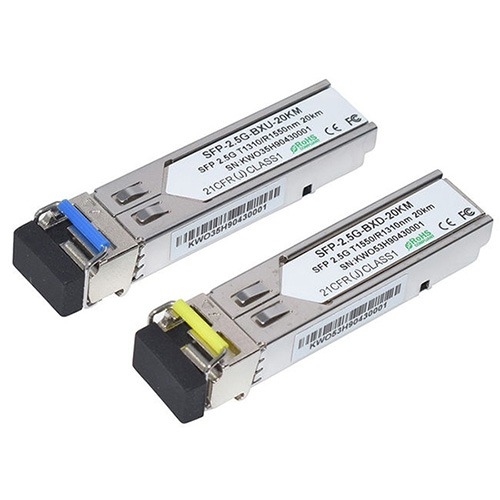

The SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 20km transmission distance with SMF.
Dual data-rate of 1.25Gbps/1.063Gbps operation
1550nm DFB laser and PIN photodetector for 20km transmission
Compliant with SFP MSA and SFF-8472 with simplex LC receptacle
Digital Diagnostic Monitoring:
Internal Calibration or External Calibration
Compatible with SONET OC-24-LR-1
Compatible with RoHS
+3.3V single power supply
Operating case temperature:
Standard : 0 to +70°C
