Home > Product > 16G SFP+ > 16G SFP+ LR 1310nm 10km SMF

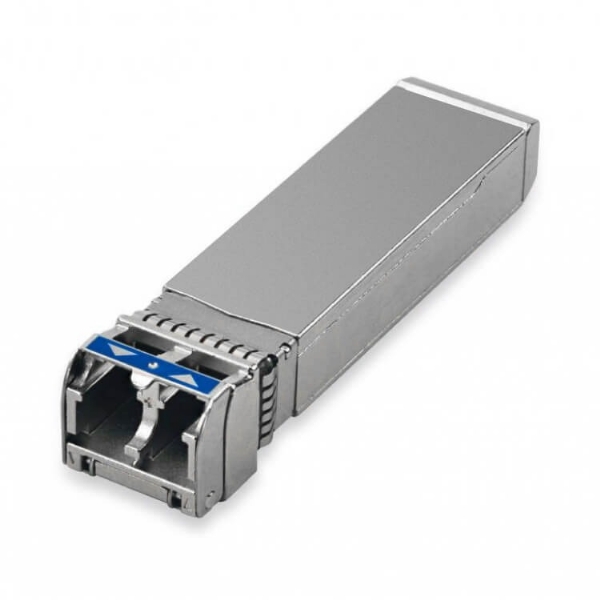

16G SFP+ LR 1310nm 10km SMF
16G SFP+ LR 1310nm 10km SMF
  • 16G SFP+ LR 1310nm 10km SMF
  • Item : TSS-16G-LR
  • NameValue
    Descriptions16G SFP+ LR
    Date Rate16G
    TXDFB
    RXPIN
    Reach10KM
    Output Power(dBm)-5~2
    Sensitivity (dBm)-12
    Temperature (℃)0-70
  • 16G SFP+ LR transceivers, according to 16 Gigabit Small Form Factor Pluggable SFP+ Multi-Sourcing Agreement (MSA) SFF-8431 Rev. 3.0 and SFF-8472 Rev. 11.0, are designed for use in Fibre Channel links up to 14.025Gb/s data rate and up to 10km link length.
Product Description
  • Up to 14.025Gb/s bi-directional data links
  • Electrical interface specifications per SFF-8431
  • Management interface specifications per
  • SFF-8432 and SFF-8472
  • SFP+ MSA package with duplex LC connector
  • Build-in Dual CDR at 14.025Gb/s and bypass at 4.25Gb/s and 8.5Gb/s
  • Uncooled 1310nm DFB Laser
  • Up to 10 km on 9/125um SMF
  • Single +3.3V power supply
  • Class 1 laser safety certified
  • 1.8W maximum power consumption with established link
  • Operating temperature Options-(Commercial) 0oC to +70oC
  • RoHS Compliant
