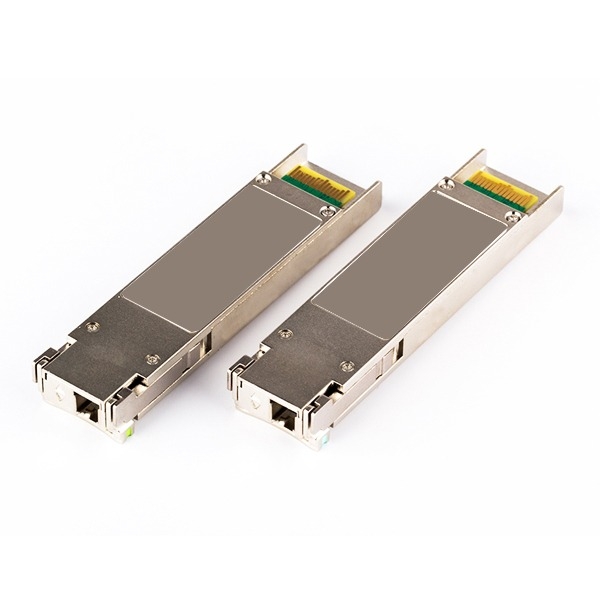

10G XFP BIDI TX1330/RX1270NM 20KM
10G XFP BIDI TX1330/RX1270NM 20KM
10G XFP BIDI TX1330/RX1270NM 20KM
Item
:
TXFB-1032-20
Inquiry
Name
Value
Descriptions
BD TX1330 RX1270 20KM
Date Rate
10G
TX
DFB
RX
PIN
Reach
20KM
Output Power(dBm)
-2~2
Sensitivity (dBm)
-14
Temperature (℃)
0-70
The transceiver module comprises a transmitter with a 1270/1330nm DFB laser transmitter, an integrated 1330/1270nm detector preamplifier(IDP) mounted in an optical header and a limiting post-amplifier IC.
Product Description
Supports 9.95Gb/s to 10.5Gb/s bit rates
Hot-pluggable XFP footprint
Maximum link length of 20km with SMF
1270/1330nm DFB laser Transmitter and 1330/1270nm Receiver
XFP MSA package with LC connector
No reference clock required
Loop Back Support.
+3.3V，+1.8V power supply
Power dissipation <2W
Compatible with RoHS
Built-in digital diagnostic functions
Temperature range 0°C to 70°C
