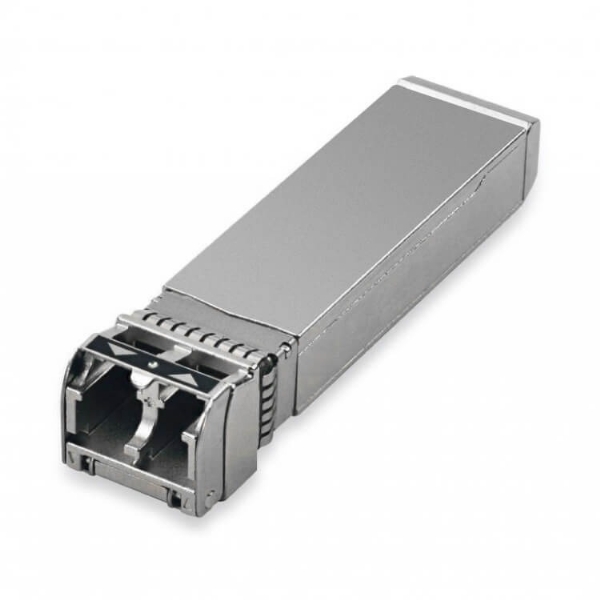

10G SFP+ 850NM 300M MMF
- 10G SFP+ 850NM 300M MMF
- Item : TSS-10G-SR
-
-
| Name | Value |
| Descriptions | 10G SFP+ SR |
| Date Rate | 10G |
| TX | VCSEL |
| RX | PIN |
| Reach | 300M |
| Output Power(dBm) | -6.5~-1 |
| Sensitivity (dBm) | -11 |
| Temperature (℃) | 0-70 |
- This 850 nm VCSEL 10Gigabit SFP+ transceiver is designed to transmit and receive optical data over 50/125 μm or 62.5/125 μm multimode optical fiber
The SFP+ SR module electrical interface is compliant to SFI electrical specifications.
- Optical interface compliant to IEEE 802.3ae 10GBASE-SR
- Electrical interface compliant to SFF-8431
- Hot Pluggable
- 850nm VCSEL transmitter, PIN photo-detector
- Maximum link length of 300m on 2000MHz/km MMF
- Operating case temperature: 0 to 70 °C
- Low power consumption
- Maximum link length of 300m on 2000MHz/km MMF
- All-metal housing for superior EMI performance
- Advanced firmware allow customer system encryption information to be stored in transceiver
- Cost effective SFP+ solution, enables higher port densities and greater bandwidth
- RoHS6 compliant (lead free)
