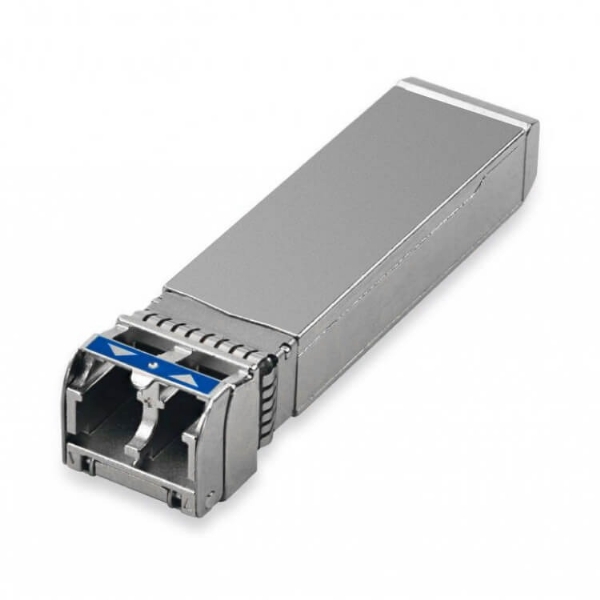

10G SFP+ 1310NM 10KM
- 10G SFP+ 1310NM 10KM
- Item : TSS-10G-LR
-
-
| Name | Value |
| Descriptions | 10G SFP+ LR |
| Date Rate | 10G |
| TX | DFB |
| RX | PIN |
| Reach | 10KM |
| Output Power(dBm) | -8~0.5 |
| Sensitivity (dBm) | -12 |
| Temperature (℃) | 0-70 |
- This 1310 nm DFB 10Gbps SFP+ transceiver is designed to transmit and receive optical data over single mode optical fiber for link length 10km.
The SFP+ 10km module electrical interface is compliant to SFI electrical specifications.
- Supports rate from 1.25 Gb/ to 10.3 Gb/s bit rates
- Optical interface compliant to IEEE 802.3ae
- Electrical interface compliant to SFF-8431
- Hot Pluggable
- 1310nm DFB transmitter, PIN photo-detector
- Operating case temperature: 0 to 70 °C
- Low power consumption
- Applicable for 10km SMF connection
- All-metal housing for superior EMI performance
- Advanced firmware allow customer system encryption information to be stored in transceiver
- Cost effective SFP+ solution, enables higher port densities and greater bandwidth
- RoHS6 compliant (lead free)
