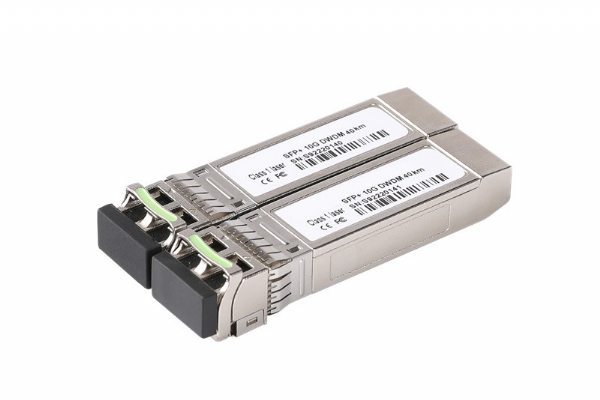

10G SFP+ DWDM ER CH17~61 40KM
- 10G SFP+ DWDM ER CH17~61 40KM
- Item : TSSD-10XX-ER
-
-
| Name | Value |
| Descriptions | 10G SFP+ DWDM ER |
| Date Rate | 10G |
| TX | EML |
| RX | PIN |
| Reach | 40KM |
| Output Power(dBm) | -1~3 |
| Sensitivity (dBm) | -14 |
| Temperature (℃) | 0-70 |
- SFP+ER DWDM Transceiver is a “Limiting module”, designed for 10GBASE-ER, and 2G/4G/ 8G/10G Fiber- Channel applications.
- Compliant with SFF-8431,SFF-8432 and IEE802.3ae
- 10GBASE-ER, and 2G/4G/ 8G/10G Fiber Channel applications.
- Suitable for use in 100GHz channel spacing DWDM systems
- Cooled EML transmitter and PIN receiver
- link length up to 40km
- Low Power Dissipation 1.5W Maximum
- -5ºC to 70ºC Operating Case Temperature
- Single 3.3V power supply
- Diagnostic Performance Monitoring of module temperature, supply Voltages, laser bias current, transmit optical power, receive optical power
- RoHS6 compliant and lead free
