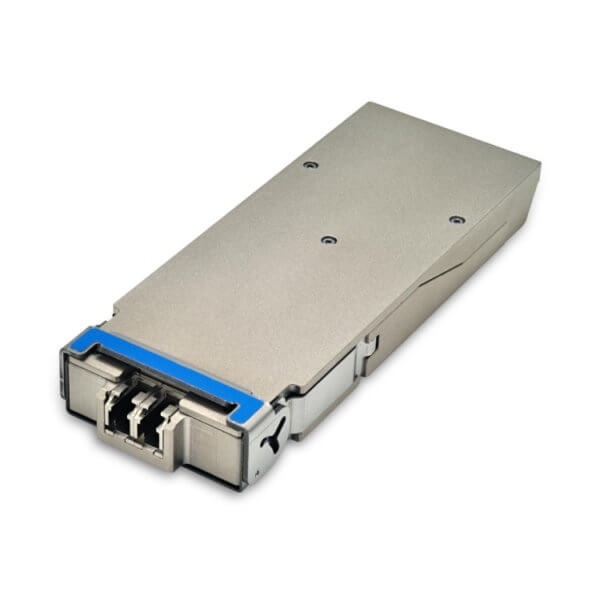

100G CFP2 LR4 1310NM 10KM SMF
100G CFP2 LR4 1310NM 10KM SMF
100G CFP2 LR4 1310NM 10KM SMF
Item
:
TS-CFP2-LR4
Inquiry
Name
Value
Descriptions
100G CFP2 LR4
Date Rate
100G
TX
DFB
RX
PIN
Reach
10KM
Output Power(dBm)
-2.9~4.5
Sensitivity (dBm)
-9.2
Temperature (℃)
0-70
They are compliant with the CFP MSA1, IEEE 802.3ba 100GBASE-LR42 and OTU4 4I1-9D1F requirements specified in ITU-T Recommendations G.959.1/G.709 and Supplement 39 (G.sup39). Digital diagnostics functions are available via the MDIO interface
Product Description
Hot-pluggable CFP2 form factor
Supports 103.1Gb/s and 112Gb/s aggregate bit rates
Power dissipation < 8W
RoHS-6 compliant (lead-free)
Commercial case temperature range of 0°C to 70°C
Single 3.3V power supply
Maximum link length of 10km on Single Mode Fiber (SMF)
4x28Gb/s DFB-based LAN-WDM transmitter
4x28G electrical interface
Duplex LC receptacles
MDIO management interface
